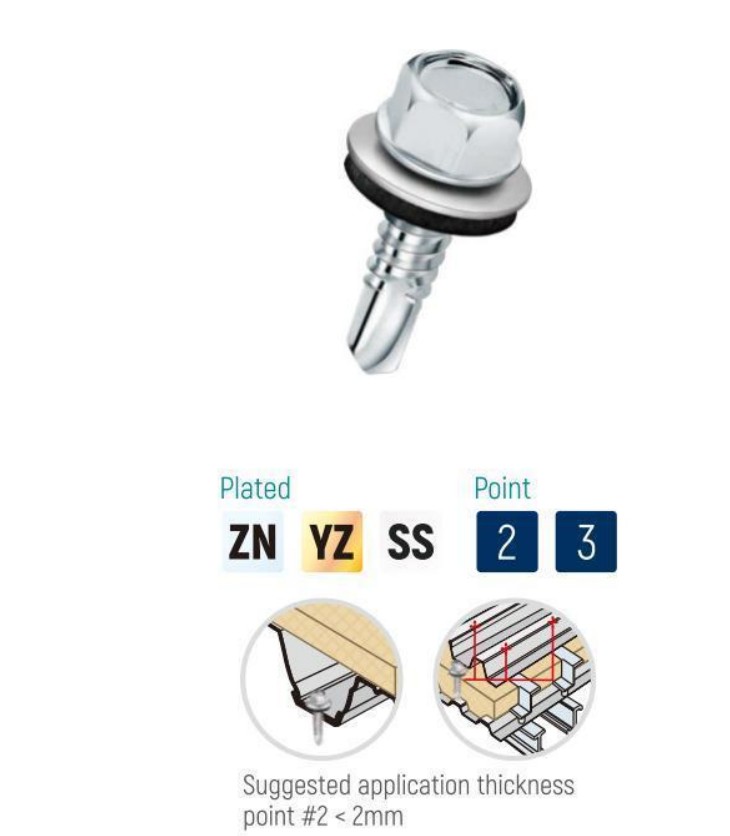

Hex Washer Head Self-Drilling Screw
Hex washer head self-drilling screws feature an integrated washer for uniform load distribution. Drill, tap and fasten thin metal in one step without pilot holes. Excellent torque transfer. Carbon steel and stainless steel available. Widely used for metal roofing, wall cladding and light steel structures.
Hex washer head self-drilling screws are integrated fasteners combining hex head, built-in washer, full thread and drill point. They can drill, tap and secure thin metal in one continuous operation without pre-drilling pilot holes. The integrated washer provides a large sealing and bearing surface to distribute clamping force, prevent pull-through and protect metal coatings. Preferred for metal roofing, wall cladding, light steel construction and outdoor metal assembly projects.
Key Features
- Hex Washer Head: Hexagonal head for high torque driving; bonded washer spreads pressure evenly, protects sheet metal surface.
- Self-Drilling Drill Point: Drills through thin steel automatically, eliminates pre-drilling and improves site installation speed.
- Continuous Thread: Forms mating threads in the drilled hole for reliable clamping strength.
- High Torque Performance: Hex drive transfers torque efficiently, less likely to slip compared with Phillips drive.
- Material: Hardened carbon steel standard; SS410 / SS304 stainless steel optional.
- Surface Finish: Blue-white zinc, yellow zinc, Ruspert coating for superior anti-corrosion, suitable for exterior use.

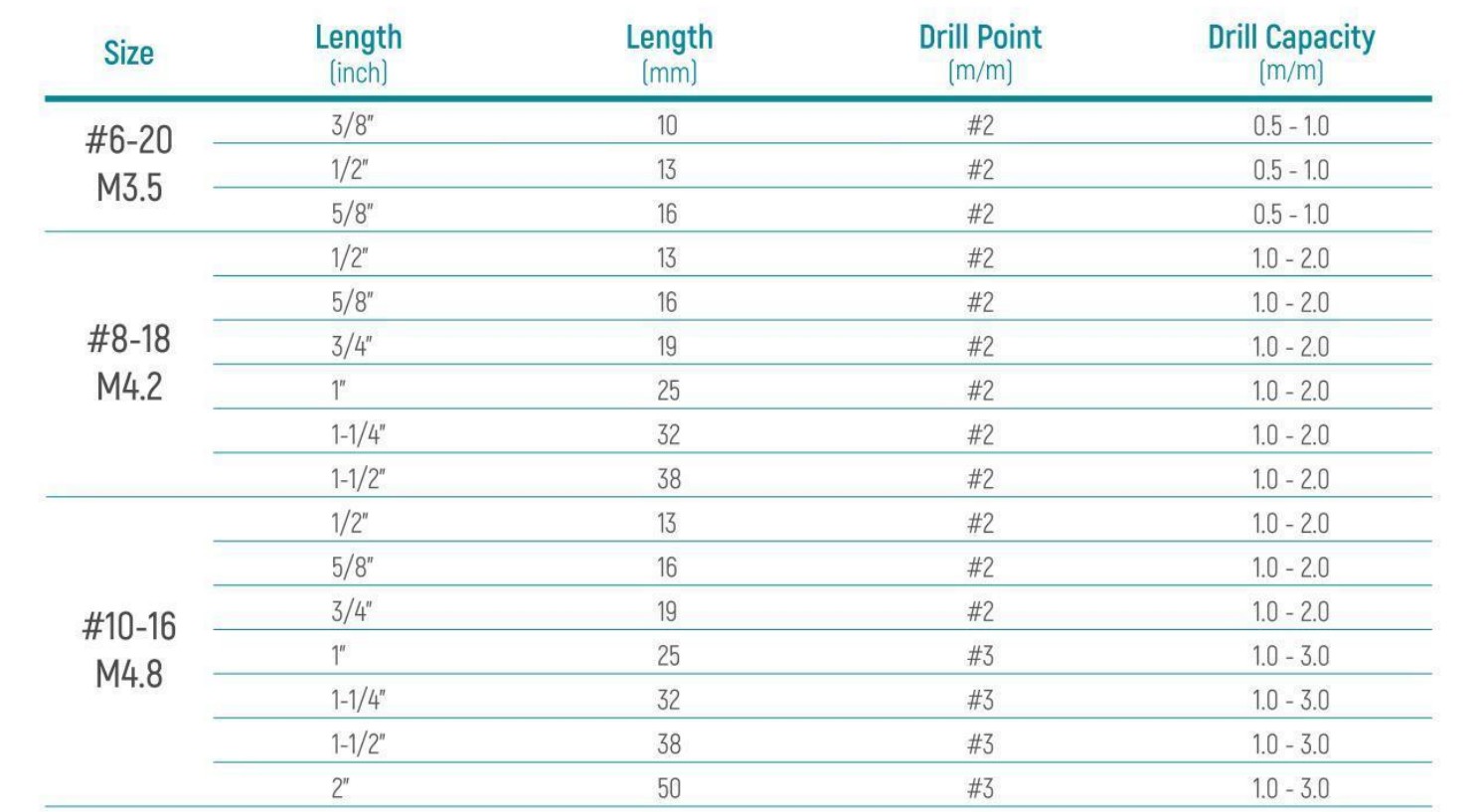

- Full Size Range: M4.2, M4.8, M5.5, M6.3; multiple drill point options for different metal thicknesses.
Applications
- Metal roof and wall panel installation
- Light steel frame, purlin and metal bracket fastening
- Solar mounting brackets, greenhouse steel structures
- Outdoor metal sheet and galvanized profile assembly Note: Select correct drill tail type based on substrate thickness; not for solid thick steel.
Technical Specifications
| Item | Details |
|---|---|
| Product Name | Hex Washer Head Self-Drilling Screw |
| Material | Hardened Carbon Steel; SS410 / SS304 optional |
| Head Type | Hex Washer Head |
| Drive | External Hex |
| Thread | Self-Tapping Thread |
| Point | Self-Drilling Drill Point |
| Surface | Blue-white Zinc / Yellow Zinc / Ruspert Coating |
| Standards | GB, ISO, DIN, ANSI |
Installation Tips
- Keep the driver perpendicular to the metal surface during drilling.
- Avoid over-tightening to prevent panel deformation or thread stripping.
- For coastal or high-corrosion environments, Ruspert coated or stainless steel versions are recommended.
