Environmental Friendly 5.2mm Thickness Roofing Waterproof Roofing Laminated Asphalt Shingles Roof Tiles Building Materials
Product Highlights
- 15-Year Warranty: Comprehensive 15-year warranty coverage for peace of mind.
- Customizable Options: Customized material, size, and multi-color choices available.
- High Wind Resistance: Withstands wind speeds up to 110mph for durability.
- Algae Resistance: Resistant to algae and moss for 10-15 years.
- Fire Resistance: Meets E(CE) and B(China) fire resistance standards.
- Manufacturer Direct: Direct from manufacturer with OEM service available.
Asphalt roofing shingles are economical and aesthetic roofing solutions for pitched residential roofs. The core substrate is reinforced fiberglass mat, which provides great tensile strength. Modified bitumen coating ensures waterproof performance. Hard natural mineral granules on the exposed surface protect asphalt from UV radiation, rain and temperature variation, also create beautiful roof color effects.
Main product categories:

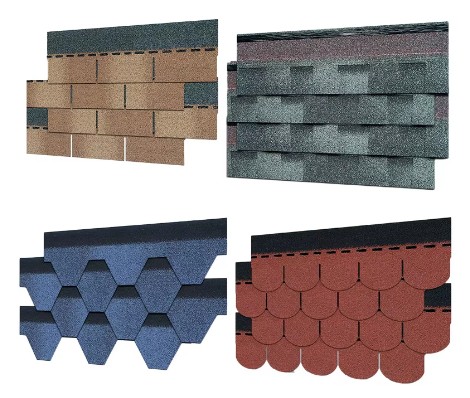

✅ 3‑Tab Asphalt Shingles — flat style, cost‑effective, widely used.
✅ Architectural / Dimensional Laminated Shingles — multi‑layer structure, three‑dimensional shadow effect, looks like natural wood shake or slate, higher‑end visual result.

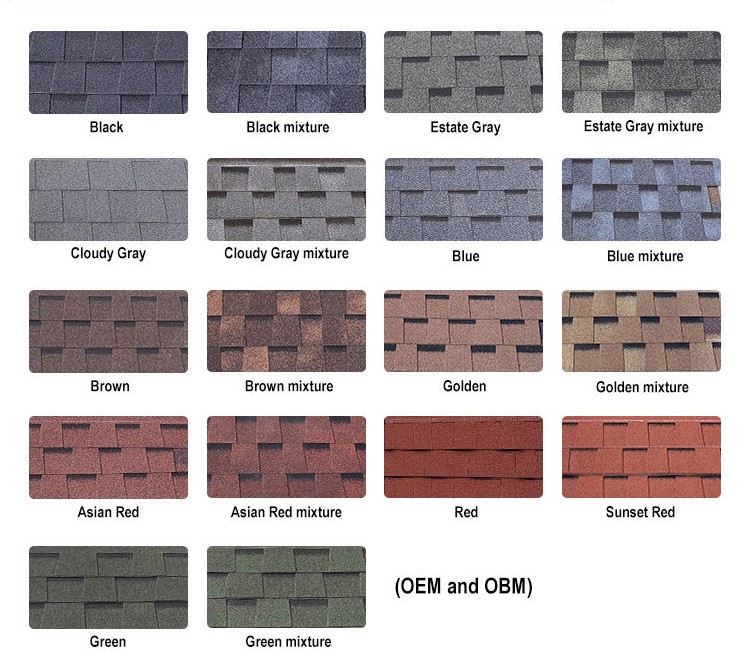

Key advantages • Multiple color options to match different house styles • Light weight, reduces overall roof load • Fast & simple nailing installation • Good wind‑resistant, anti‑algae property • Suitable for new building & old‑roof renovation • Working life: 15‑30 years under normal climate conditions

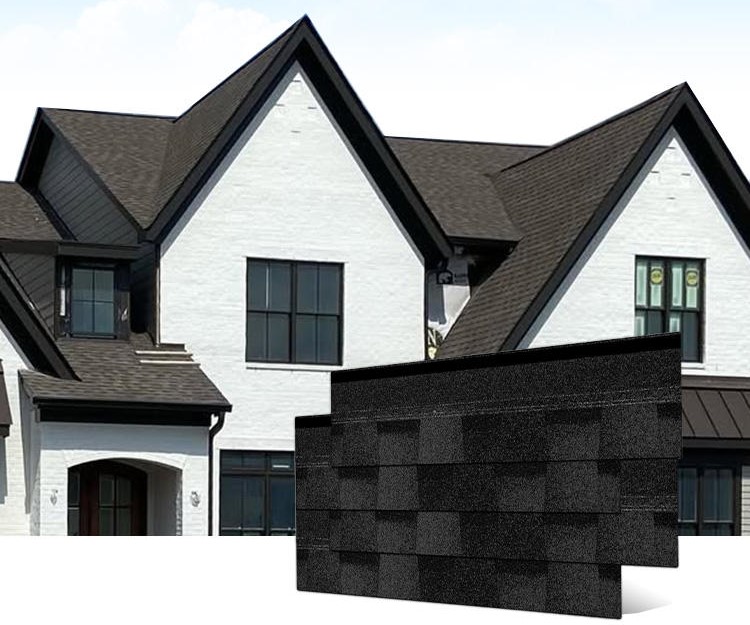

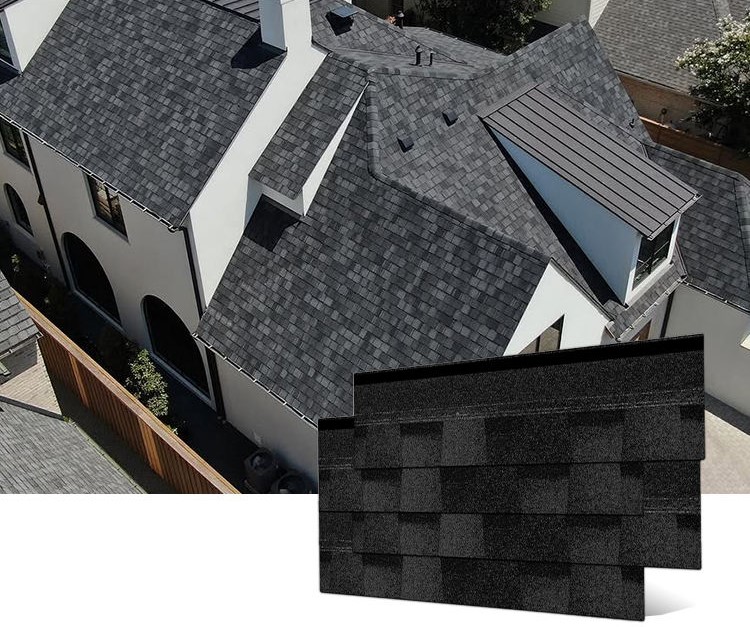

Applications: family villas, private houses, townhouses, tourist resort buildings. OEM & custom color service available.
|
Type
|
Warranty
|
Size(mm)
|
Thickness(mm)
|
Packing
|
|
3-Tab
|
30 years
|
1000*333
|
2.6±0.1
|
21 pcs/bundle
|
|
Laminated
|
30 years
|
1000*333
|
5.2±0.2
|
16 pcs/bundle
|
|
Mosaic
|
30 years
|
1000*325
|
2.6±0.1
|
21 pcs/bundle
|
|
Goethe
|
30 years
|
1000*325
|
2.6±0.1
|
21 pcs/bundle
|
|
Fish Scale
|
30 years
|
1000*333
|
2.6±0.1
|
21 pcs/bundle
|
| Feature / Metric | Asphalt Shingles |
| Visual Style & Shapes | Flat or dual-layer dimensional overlay. Designs include 3-Tab, Laminate/Architectural, Mosaic, and Fish-scale styles. |
| Core Base Material | High-tensile Fiberglass Mat (typically 90g/m² – 120g/m²) |
| Binder / Coating Layer | Oxidized Bitumen or SBS Modified Bitumen for waterproofing and bonding |
| Surface Granule Layer | High-Temperature Sintered Basalt Granules (Ceramic-coated) or natural mineral granules |
| Standard Dimensions | • Single-Layer: 1000 mm × 333 mm (Thickness: ~2.7–3.0 mm)• Double-Layer: 1000 mm × 333 mm (Thickness: ~5.2–5.6 mm) |
| Weight per m² | Heavier:• Single-Layer: ~9.0–10.5 kg/m²• Double-Layer: ~11.5–13.5 kg/m² |
| Expected Lifespan | • Single-Layer: 20–25 years• Double-Layer: 30–40 years |
| Wind & Storm Resistance | Resistant up to 110–130 mph; relies on heat-activated self-sealing adhesive strips and nails. |
| Weather & UV Resistance | Excellent in cold/temperate climates. Prolonged extreme UV/heat may accelerate bitumen softening and aging over time. |
| 20ft Container Payload | Weight-limited cargo: ~2,000 – 2,500 m² per 20’GP container. |
| Primary Target Export Markets | North America, Latin America (Mexico, Chile), Russia & CIS nations, Southeast Asia. |
